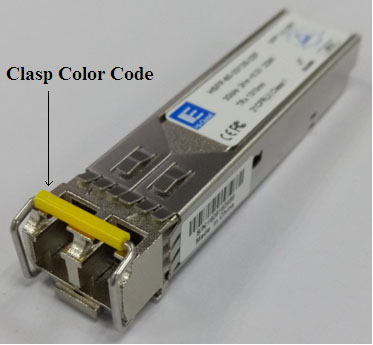

1000BASE-CWDM SFP 1270nm-1610nm 100km Hi-Optel HCSFP-24-0XX12-22F module

Short Description:

Gigabit Ethernet

Metro/Access Networks

SDH/SONET/ATM

Fiber Channel

Product Detail

Product Tags

Features

● Multi-Source Package with Duplex LC Connector
● Up to 1.25Gb/s Data Links
● 34dB Power budget
● Single +3.3V Power Supply
● Hot-Pluggable
● Compliant with Specifications for ITU-T G.957, G.958
● Eye Safety Designed to Meet Laser Class1, Compliant with IEC60825
● Monitoring Interface Compliant with SFF-8472
● Compliant with Bellcore TA-NWT-000983
● Operating Case Temperature
Standard(Y=1):0℃~+70℃
Industrial(Y=2):-20℃~+85℃
● RoHS Compliant Products

Pin Description

Pin	Symbol	Name/Description	Ref
1	VEET	Transmitter Ground(Common with Receiver Ground)	1
2	TFAULT	Transmitter Fault.Low normal operation,High Fault indication
3	TDIS	Transmitter Disable.Laser output disabled on high or open	2
4	MOD_DEF(2)	Module Definition 2.Data line for Serial ID	3
5	MOD_DEF(1)	Module Definition 1.Clock line for Serial ID	3
6	MOD_DEF(0)	Module Definition 0.Grounded within the moudle	3
7	Rate Select	No connection required
8	LOS	Loss of Signal indication.Logic 0 indicates normal operation.	4
9	VEER	Receiver Ground(Common with Transmitter Ground)	1
10	VEER	Receiver Ground(Common with Transmitter Ground)	1
11	VEER	Receiver Ground(Common with Transmitter Ground)	1
12	RD-	Receiver Inverted DATA out.AC Coupled
13	RD+	Receiver Non-inverted DATA out.AC Coupled
14	VEER	Receiver Ground(Common with Transmitter Ground)	1
15	VCCR	Receiver Power Supply
16	VCCT	Transmitter Power Supply
17	VEET	Transmitter Ground(Common with Receiver Ground)	1
18	TD+	Transmitter Non-inverted DATA in.AC Coupled
19	TD-	Transmitter Inverted DATA in.AC Coupled
20	VEET	Transmitter Ground(Common with Receiver Ground)	1

Notes:
1. Circuit ground is internally isolated from chassis ground.
2. Laser output disabled on TDIS >2.0V or open, enabled on TDIS <0.8V.
3. Should be pulled up with 4.7k – 10kohms on host board to a voltage between 2.0V and 3.6V.
MOD_DEF(0) pulls line low to indicate module is plugged in.
4. LOS is open collector output. Should be pulled up with 4.7k – 10kohms on host board to a voltage between 2.0V and 3.6V. Logic 0 indicates normal operation; logic 1 indicates loss of signal.
