Descriptions

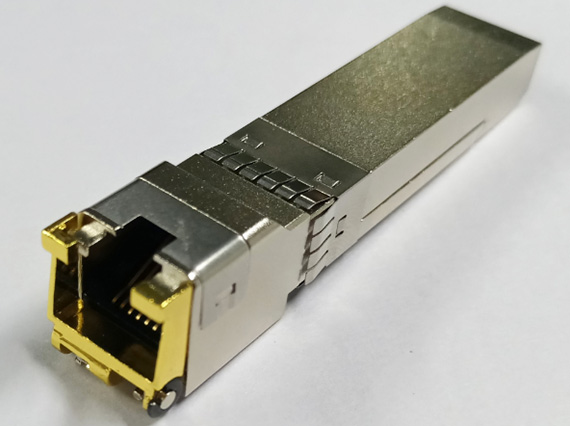

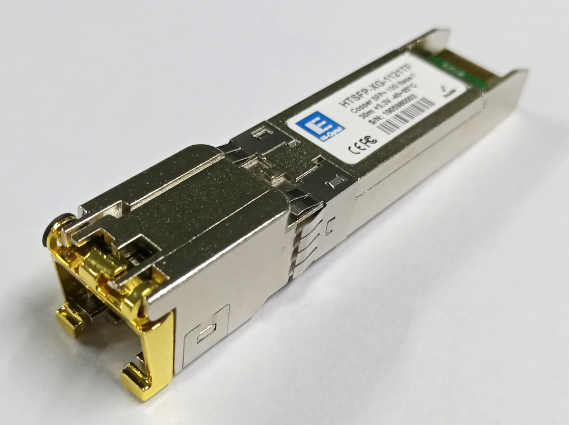

HTSFP-XG-1111TF supports SGMII to Copper Auto-negotiation mode . compliant with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE 802. 3-2012 and IEEE 802.3ab, which supports 10/100/1000Base-T Copper data-rate up to 100 meters reach over twisted-pair category 5 cable.

The HTSFP-XG-1111TF provides standard serial ID information compliant with SFP MSA, which can be accessed with address of A0h via the 2-wire serial CMOS EEPROM protocol. The physical IC can also be accessed via 2-wire serial bus at address ACh. The address of the PHY is 1010110x where x is the R/W bit.

Features

● Supports XFI(SFI)or SGMII to Copper Auto-negotiation.
● 10G BASE-T operation in Host Systems with XFI(SFI) Interface.
● 10G BASE-T supports Links up to 30m using Cat 6a/7 Cable. Power Consumption 2.5W MAX @ 30m.
● 10/100/1000 BASE-T operation in Host Systems with SGMII Interface.

● 10/100/1000 BASE-T supports Links up to 100m using Cat 5 Cable or better.
● Unshielded and Shielded cable support.
● MDI/MDIX Crossover.
● 3.3V Single Power Supply.
● Hot-pluggable SFP Footprint. Fully Metallic Enclosure for Low EMI.
● Compact RJ-45 Connector Assembly.
● Detailed Product Information in EEPROM.

● Access to I2C -Wire Serial Bus Interface for Serial ID and PHY Register Access.
● Compliant with SFF-8431 SFF-8432 and SFF-8472.
● Compliant with SFP MSA.
● Compliant with IEEE 802.3-2012, IEEE 802.3az.
● Compliant with FCC 47 CFR Part 15 Class B / EN55022 Class B.
● Compliant with RoHs-6.
● Operation temperature range 0°C to 70°C.

Application

● 10 Gigabit Ethernet over Category 6a/7 Cable
● Switch/Route to Switch/Route Link
● High Speed I/O for File Servers

Ordering Information

Part No.	DESCRIPTION	LABEL MARKING
HTSFP-XG-1111TF	10G /5G /2.5GBase-T and 10/100/1000Base-T default for all speed advertisement to XFI interface with Rate Matching, enable the auto-negotiation default, with Tx_disable function, support Rx_LOS as link indication function, 10GBase-T over Category 6a/7 Cable up to 30m, 10/100/1000Base-T over unshielded twisted-pair (UTP) Category 5 Cable up to 100m, operation temperature 0～70℃
HTSFP-XG-1121TF	10G /5G /2.5GBase-T and 10/100/1000Base-T default for all speed advertisement to XFI interface with Rate Matching, enable the auto-negotiation default, with Tx_disable function, support Rx_LOS as link indication function, 10GBase-T over Category 6a/7 Cable up to 30m, 10/100/1000Base-T over unshielded twisted-pair (UTP) Category 5 Cable up to 100m, operation temperature -40～85℃
HTSFP-XG-1112TF	10G /5G /2.5GBase-T and 10/100/1000Base-T default for all speed advertisement to XFI/5GBase-R/2.5GBase-X/SGMII interface and SGMII Auto-Negotiation Off default, with Tx_disable function, support Rx_LOS as link indication function, 10GBase-T over Category 6a/7 Cable up to 30m, 10/100/1000Base-T over unshielded twisted-pair (UTP) Category 5 Cable up to 100m, operation temperature 0～70℃
HTSFP-XG-1122TF	10G /5G /2.5GBase-T and 10/100/1000Base-T default for all speed advertisement to XFI/5GBase-R/2.5GBase-X/SGMII interface and SGMII Auto-Negotiation Off default, with Tx_disable function, support Rx_LOS as link indication function, 10GBase-T over Category 6a/7 Cable up to 30m, 10/100/1000Base-T over unshielded twisted-pair (UTP) Category 5 Cable up to 100m, operation temperature -40～85℃
HTSFP-XG-1113TF	10G /5G /2.5GBase-T and 10/100/1000Base-T default for all speed advertisement to XFI/5GBase-R/2.5GBase-X/SGMII interface and SGMII Auto-Negotiation On, enable the auto-negotiation default, with Tx_disable function, support Rx_LOS as link indication function, 10GBase-T over Category 6a/7 Cable up to 30m, 10/100/1000Base-T over unshielded twisted-pair (UTP) Category 5 Cable up to 100m, operation temperature 0～70℃
HTSFP-XG-1123TF	10G /5G /2.5GBase-T and 10/100/1000Base-T default for all speed advertisement to XFI/5GBase-R/2.5GBase-X/SGMII interface and SGMII Auto-Negotiation On, enable the auto-negotiation default, with Tx_disable function, support Rx_LOS as link indication function, 10GBase-T over Category 6a/7 Cable up to 30m, 10/100/1000Base-T over unshielded twisted-pair (UTP) Category 5 Cable up to 100m, operation temperature -40～85℃
HTSFP-XG-1114TF	10G /5G /2.5GBase-T and 10/100/1000Base-T default for all speed advertisement to USXGMII interface, enable the auto-negotiation default, with Tx_disable function, support Rx_LOS as link indication function, 10GBase-T over Category 6a/7 Cable up to 30m, 10/100/1000Base-T over unshielded twisted-pair (UTP) Category 5 Cable up to 100m, operation temperature 0～70℃
HTSFP-XG-1124TF	10G /5G /2.5GBase-T and 10/100/1000Base-T default for all speed advertisement to USXGMII interface, enable the auto-negotiation default, with Tx_disable function, support Rx_LOS as link indication function, 10GBase-T over Category 6a/7 Cable up to 30m, 10/100/1000Base-T over unshielded twisted-pair (UTP) Category 5 Cable up to 100m, operation temperature -40～85℃

Notes:
1. Adding the Capital “F” at the end of the PN for RoHs compliant product.
2. Automatic crossover detection is enabled. External crossover cable is not required.
3. 10GBASE-T operation requires the host system to have an SFI interface with no clocks.
4. 10/100/1000 BASE-T operation requires the host system to have an SGMII interface with no clocks.
