Cheapest Price Sfp Single Mode Lc - 100BASE-SX SFP 850nm 2km Hi-Optel HSFP-03-3831M-22F module – Hi-optel Detail:
Features
● Multi-Source Package with Duplex LC Connector
● Single +3.3V Power Supply
● Hot-Pluggable
● Up to155Mb/s Data Links
● Up to 2Km on 50/125µm MMF
Up to 1Km on 62.5/125µm MMF
● Eye Safety Designed to Meet Laser Class1, Compliant with IEC60825
● Compliant with Bellcore TA-NWT-000983
● Monitoring Interface Compliant with SFF-8472
● Operating Case Temperature
Standard(X=1):0℃~+70℃
Industrial(X=2):-40℃~+85℃
● RoHS Compliant Products
Specification
Electrical and Optical Characteristics: (Condition: Ta=TOP)
| Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
| Transmitter Differential Input Volt |
+/-TX_DAT |
200 |
2400 |
mV p-p |
|
| Supply Current |
ICC |
130 |
300 |
mA |
|
| Tx_Disable Input Voltage – Low |
VIL |
0 |
0.8 |
V |
|
| Tx_Disable Input Voltage – High |
VIH |
2.0 |
Vcc |
V |
|
| Tx_Fault Output Voltage – Low |
VOL |
0 |
0.8 |
V |
|
| Tx_Fault Output Voltage – High |
VOH |
2.0 |
Vcc |
V |
|
| Receiver Differential Output Volt |
+/-RX_DAT |
400 |
1400 |
mV p-p |
|
| Rx_LOS Output Voltage- Low |
VOL |
0 |
0.8 |
V |
|
| Rx_LOS Output Voltage- High |
VOH |
2.0 |
Vcc |
V |
Transmitter:
|
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
| Data Rate |
B |
- |
155 |
- |
Mb/s |
| Centre Wavelength |
λc |
830 |
850 |
860 |
nm |
|
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
| Output Spectral Width(RMS) |
△λ |
- |
- |
0.85 |
nm |
| Average Output Power*Note1 |
Po |
-9.5 |
- |
-3 |
dBm |
| Extinction Ratio*Note2 |
E.R. |
8.2 |
- |
- |
dB |
| Supply Current |
ICC |
- |
70 |
180 |
mA |
| Rise and Fall Time (20~80%) |
Tr |
- |
|
2 |
ns |
| Average Output Power@TX_DISABLE |
Po_dis |
|
|
-45 |
dBm |
| Output Optical Eye |
Compliant with ITU-T G.957 |
||||
Receiver:
| Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
| Date Rate |
B |
100 |
155 |
- |
Mb/s |
| Receive Sensitivity*Note3 |
Pmin |
- |
- |
-17 |
dBm |
| Maximum Input Power |
Pmax |
-3 |
- |
- |
dBm |
| Signal Detect Threshold-De-Assert |
SD |
|
|
-19 |
dBm |
| Signal Detect Threshold-Assert |
SA |
-45 |
|
|
dBm |
| Hysteresis |
- |
|
2.0 |
|
dB |
| Supply Current |
ICC |
- |
60 |
120 |
mA |
| Operating Wavelength |
λc |
760 |
- |
860 |
nm |
| Alarm Output Interface |
LVTTL |
||||
Note1: Measured with 62.5/125µm multi-mode fiber.
Note2: Filtered, measured with a PRBS 2^23-1 test pattern @155Mbps.
Note3: Measured with ER=8.2dB, 2^23-1 PRBS data pattern, BER≤1E-12.

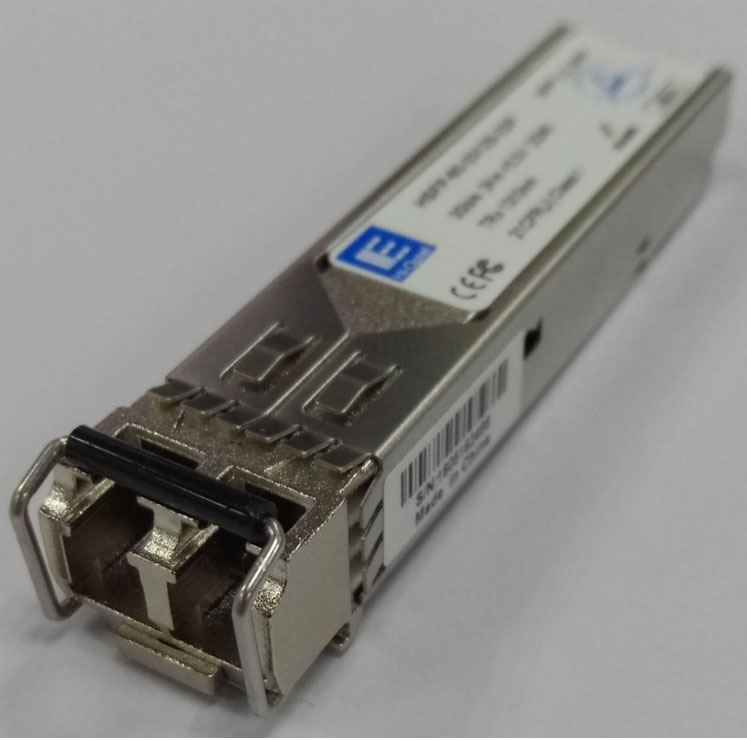

Product detail pictures:
