Top Quality Sfp Multi Mode - 2.5GBASE-ZR, 1550nm, 80km Hi-Optel HSFP-48-0571S-22F module – Hi-optel Detail:

Features

● Multi-Source Package with Duplex LC Connector
● Up to 2.5Gb/s Data Links
● Up to 80km on 9/125µm SMF
● Single +3.3V Power Supply
● Hot-Pluggable
● Compliant with Specifications for ITU-T G.957, G.958
● Eye Safety Designed to Meet Laser Class1, Compliant with IEC60825
● Monitoring Interface Compliant with SFF-8472
● Compliant with Bellcore TA-NWT-000983
● Operating Case Temperature
Standard(X=1):0℃~+70℃
Industrial(X=2):-40℃~+85℃
● RoHS Compliant Products

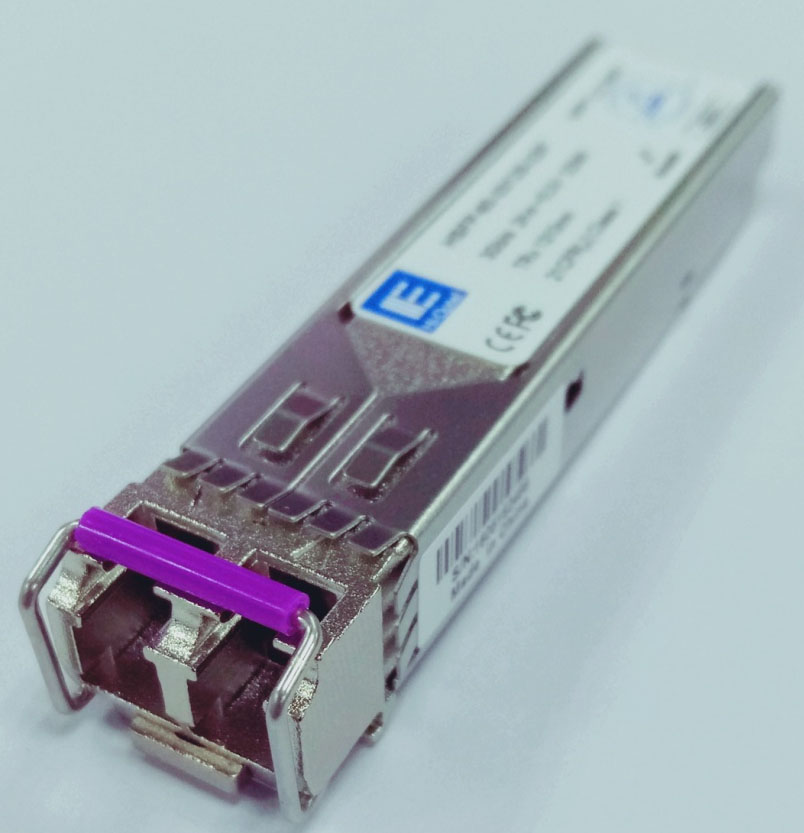

2.5GBASE-ZR, 1550n

Specification

Electrical and Optical Characteristics: (Condition: T_a=T_OP)

Parameter	Symbol	Min.	Typical	Max.	Unit
Transmitter Differential Input Volt	+/-TX_DAT	200		2400	mV p-p
Supply Current	ICC		160	350	mA
Tx_Disable Input Voltage – Low	V_IL	0		0.8	V
Tx_Disable Input Voltage – High	V_IH	2.0		Vcc	V
Tx_Fault Output Voltage – Low	V_OL	0		0.8	V
Tx_Fault Output Voltage – High	V_OH	2.0		Vcc	V
Receiver Differential Output Volt	+/-RX_DAT	400		1400	mV p-p
Rx_LOS Output Voltage- Low	V_OL	0		0.8	V
Rx_LOS Output Voltage- High	V_OH	2.0		Vcc	V

Transmitter

Parameter	Symbol	Min.	Typical	Max.	Unit
Data Rate	B	-	2.5	-	Gb/s
Centre Wavelength	λc	1500	1550	1580	nm
Output Spectral Width	△λ(-20dB)	-	-	1	nm
Parameter	Symbol	Min.	Typical	Max.	Unit
Side Mode Suppression Ratio	SMSR	30			dB
Average Output Power^*Note1	Po	-2	-	3	dBm
Extinction Ratio^*Note2	E.R.	8.2	-	-	dB
Supply Current	ICC	-	100	230	mA
Rise/Fall Time(20%～80%)	tr/tf	-	-	150	ps
Average Output Power@TX_DISABLE	Po_dis			-45	dBm
Output Optical Eye	Compliant with ITU-T G.957
